Dräger X-am 5600

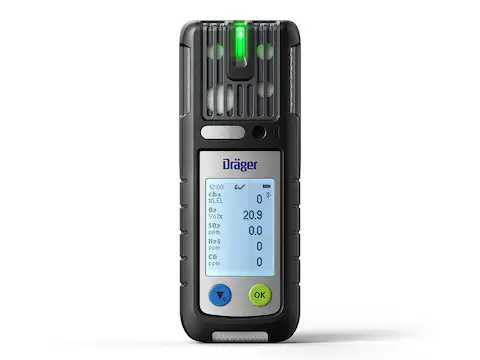

Dräger X-am 5600 Multi Gas Detector

Shop the Dräger X-am 5600. Smallest 6-gas detector with poison-resistant IR sensors. IP67 waterproof & ATEX certified. Buy pro gas safety now!

Gases Detected
Up to 6 Gases (IR LEL, IR CO2, O2, CO, H2S, SO2, NO2, etc.)
Sensor Technology
Infrared (IR) and Electrochemical (EC)
Ingress Protection
IP67
Alarms
Audible (>90 dB), 360° Visual, Vibrating
Certifications
ATEX, IECEx, CE, cCSAus
Operating Temperature
-20°C to +50°C
Weight
Approx. 220g (7.8 oz)
Data Logger
Retrievable via Infrared Interface (>1000 hours)
View Datasheet
Equiry On WhatsApp

Equipment Analysis

Advanced IR Sensor Technology with the Dräger X-am® 5600

The Dräger X-am 5600 is the smallest gas detection instrument for the measurement of up to 6 gases. Featuring innovative infrared sensor technology, this multi-gas detector is ideal for personal monitoring in environments containing explosive, flammable, or toxic gases. Its ergonomic, mobile design ensures maximum safety for personnel working in high-risk industrial zones.

Technical Features and Industrial Benefits

  • Infrared (IR) Sensors: Equipped with poison-resistant IR sensors for CO2 and explosive gases (LEL), providing highly accurate readings even in oxygen-deficient or inert atmospheres.

  • Simultaneous 6-Gas Monitoring: Capable of detecting up to 6 gases at once, including O2, Cl2, CO, H2S, NH3, HCN, NO2, and various organic vapours.

  • Ultra-Durable Housing: Built with an IP67 rating, the device is waterproof, dust-proof, and features an integrated rubber protector for extreme impact resistance.

  • 360-Degree Alarm: A multi-tone audible alarm (>90 dB), high-visibility visual LEDs, and a powerful vibration alarm ensure alerts are noticed instantly.

Specific Use Cases

The Dräger X-am 5600 is the premier choice for clearance measurements in confined spaces, refinery maintenance, and emergency response teams. It is particularly effective in oil and gas, chemical processing, and mining industries where the presence of catalytic poisons can compromise standard combustible gas sensors.
